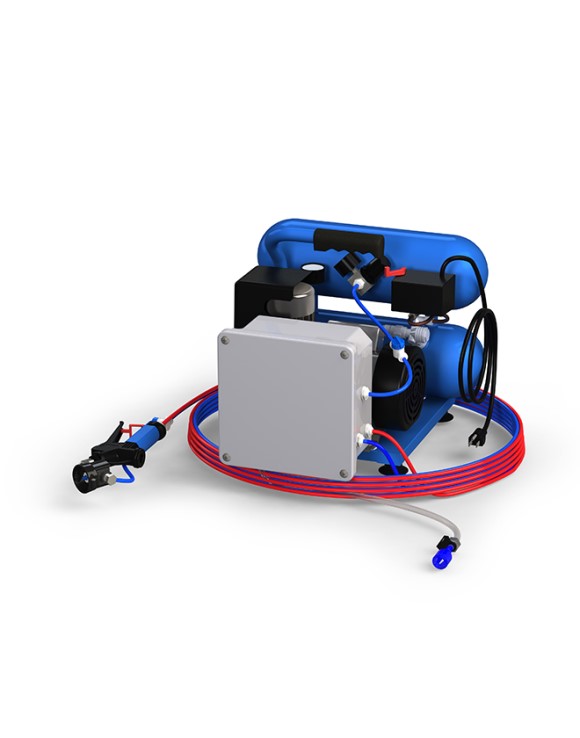

Electric Mist Unit For Pre-Mix Products

ideal for fogging / misting in areas without compressed air.
This 120 VAC electric unit lets you apply disinfectants and other chemistry with a handheld wand. With a built in air compressor, all you have to do is plug the unit into a standard wall outlet and get to work.

- Draws from pre-mixed solution
- Powered by electricity (120 VAC)
- Handheld wand with 50 ft. (15.2 m) twin-line discharge tubing
- Option for 100 ft. (30.5 m) twin-line or 25 ft. (7.6 m) coiled twin-line discharge tubing
- Built in air compressor (1.5 hp)
- 15 micron droplet size at 50 psi (3.4 bar)
- Compact size for portability

Power Type: Electricity

Chemical pickup type: Draws from pre-mixed solution

Number of products unit can draw from: One product

Suction line length/diameter: 6 ft. (1.8 m) clear hose with 1/4 in. (6.4 mm) inside diameter

Discharge hose diameter/length: 50 ft. (15.2 m) twin-line tubing 1/4 in. (6.4 mm) outside diameter

Discharge wand/tip type: Polypropylene trigger handle for liquid output and polypropylene fog/mist nozzle with Kynar tip

Output distance: 3.4.5 ft (0.9-1.4 m)

Output volume: 8.96 oz/min at 50 psi (3.4 bar) – static

Flow rate*: 8.96 oz/min at 50 psi (3.4 bar) – static

Pump seals: Santoprene, Viton, or Kalrez

Droplet size: 15 microns at 50 psi (3.4 bar)

Coverage area: 1 liter of solution will cover approximately 1000 cubic feet

Nozzle type: Pneumatic fog nozzle

Number of nozzles: One

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
